Description
▷Product Overview

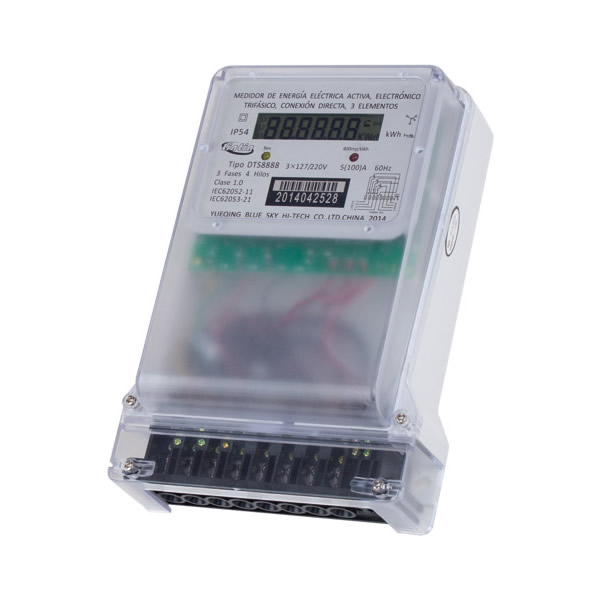

The electronic meter is our own development and new model type. It can be FORM 16A .The product uses advanced low-power LSI and SMT technology and advanced manufacturing technology, with high accuracy, stable performance, low power consumption and high rel iabi l ity and other characteristics. A special selection of high performance energy metering chips and microprocessors, to ensure the accuracy and rel iabi l ity of measurement used to measure the rated frequency is 60Hz (or 50Hz) of the three-phase power, LCD displays power.
The meter meets the IEC62052-11, IEC62053-21/22/23 and other standards.
| ▷Features ● With high accuracy, stable performance, low power consumption and high rel iabi l ity characteristics. ● Low starting power. ● Phase loss indication, When phase power loss, the l ight of indication turns on. ● Large LCD displays 6+2 digits. ● Positive active energy measurement of time-sharing, reverse total energy and demand. |
||||||||||
▷The main technical parameter
|

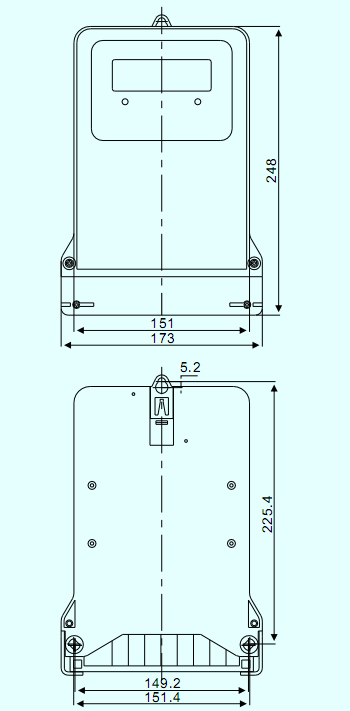

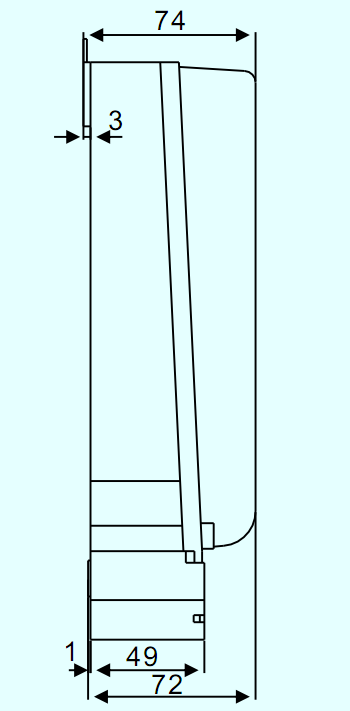

Overall and installation dimension
