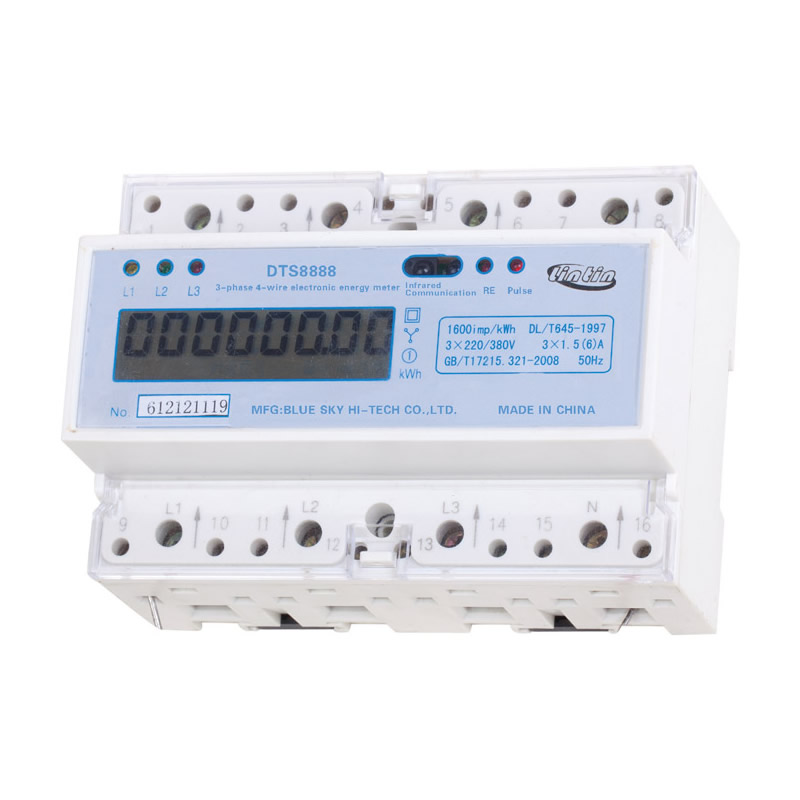

DTS8888 Three-phase energy meter rai l LCD


▷Product Overview
This three-phase active power meter is a rai l-type advanced microelectronic technology and SMT manufacturing process of products, the product used in rated frequency 50Hz (optional 60Hz) of the three-phase AC active energy measurement. The three-phase active power meter with IR and RS-485 port communication function, using LCD display that can be used hand-held meter reading machine set-up and electricity meter reading. To achieve the ideal of measuring residential electricity bi l l ing meters, also has a measurement of high precision, high sensitivity, rel iable performance, wide loading, low power consumption, smal l size, light weight, simple operation, easy to instal l etc.
The product meets the IEC 62053-21 standard for electronic energy meter of al l the technical requirements.
● measuring three-phase active energy, long-term work without adjustments;
● three-phase power supply l ine (three-phase three-wire watt-hour meter in either three-wire l ine) or two l ines (three-phase four-wire watt-hour meter in either two-wire four-wire) power outages, measurement accuracy is not affected;
● wide operating temperature range;
● with broken functional ity or voltage relative to instruction indicator function;
● with the reverse direction feature: When the current is reversed, reverse indicator l ight;
●when the meter communicating with external devices, communication indicator l ight, said the state energy meter in communication.
▷The main technical parameter

 Rated curren  3×1.5(6)A、3×5(20)A、3×10(40)A、3×15(60)A、3×20(80)A、3×30(100)A
 Rated voltage  3 × 100V three-phase three-wire or 3 × 380V
 Three-phase four-wire 3 × 220/380V, or 3 × 57.7/100V
 Rated frequency(Hz)  50Hz、60Hz
 The accuracy class  class 1.0、 class 2.0

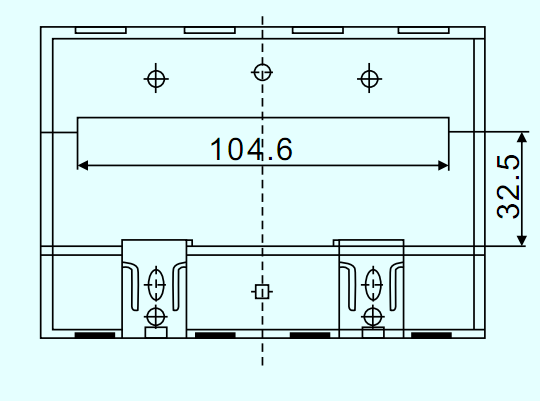

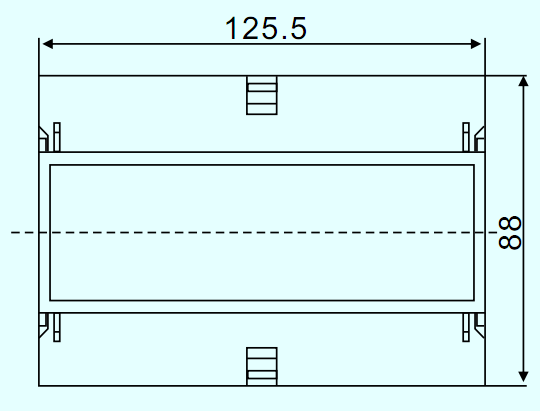

◈Overall and installation dimension
