DDS8888-2 Single-phase three-wire electronic energy meter (LCD)

Description

▷Product Overview
This Single phase electronic energy meter adopts advanced microelectronic technique and SMT manufacturing technology. It is used for measuring single phase AC active electronic energy whose rated frequency is 60Hz.This meter adopts LCD display and it an ideal metering device for inhabitant power uti l ization charging. Besides, it is also owns many advantages such as high metering precision, high sensitivity, rel iable performance, wide loading, low power consumption, smal l volume, l ight weight, simply operating and easy for instal lation etc. It is complying with the standard of IEC 62053-21,IEC62052-11.

▷Features
● Low power consumption;
● Low staring power;
● Anti tamper design which makes smal ler anti tamper, measure positive energy when it reverses;
● There are power, pulse, reverse indicator LED;
● Use 6+2 big LCD display which is easy to read, with smal ler reading error.LCD display picture 2 as below.

▷The main technical parameter

 Accuracy class  class 1.0、class 2.0
 voltage  120V、240V
 Current  5(30)A、5(60)A
 Constant  3200imp/kWh
 Rated Frequency  60Hz

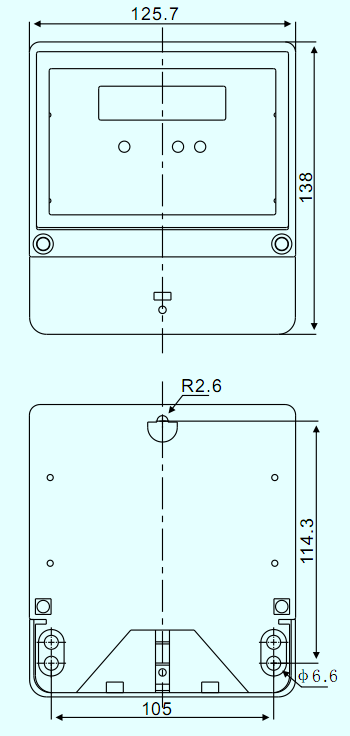

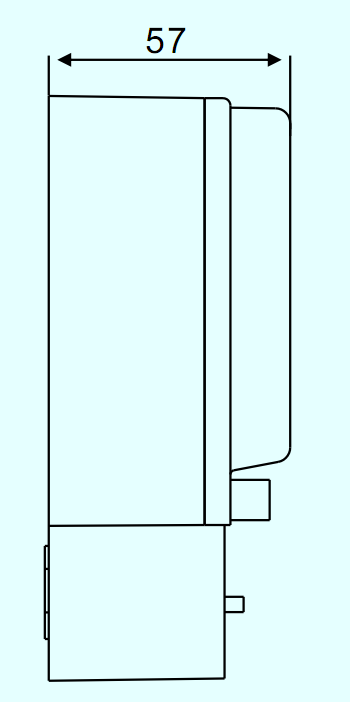

◈Overall and installation dimension
